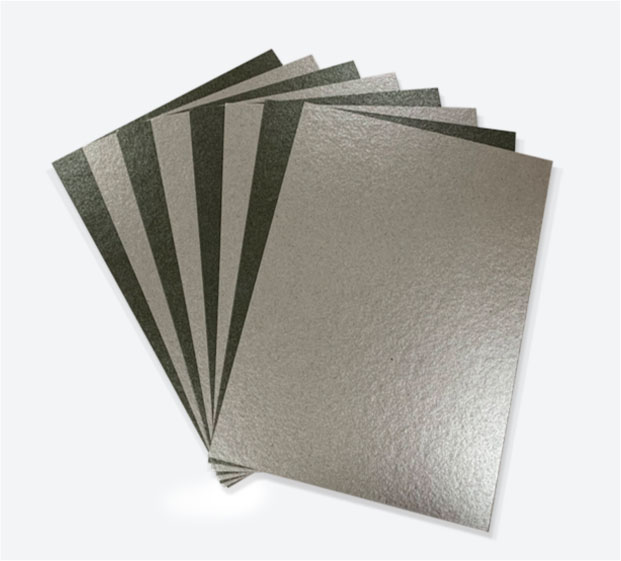

MICA FABRIC
It is composited of self-developed mica fabric and high-temperature resistant and refractory fabric through high-temperature silicone resin.
Mice fabric boasts advantages such as high temperature resistance, fireproofing, and voltage endurance.
The high-temperature resistant and refractory fabric (composed of over 96% Al2O3 + SiO2 and other materials) features a low thermal conductivity and high temperature resistance, as well as a polymeric structure that grants the material excellent compressibility.
The interior of the high-temperature resistant and refractory fabric is designed with micropores, effectively blocking the heat conduction path.

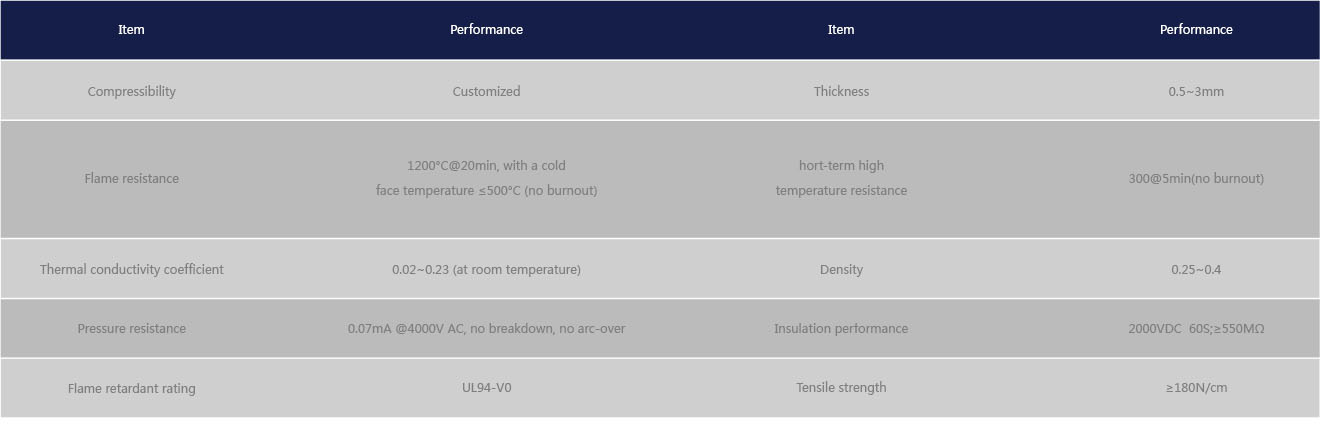

PERFORMANCE | MICA FABRIC

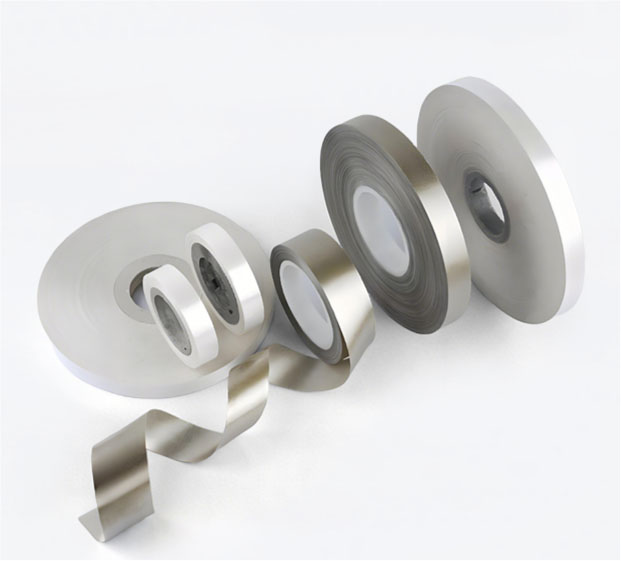

MICA TAPE
High-temperature resistant mica tape is mainly used for preventing high temperatures in high-voltage busbars and high-voltage cable lines in new energy applications.
The mica tape can withstand temperatures up to 1300°C for 10 minutes without burnout.
Common sizes: 0.15*20mm, 0.15*25mm, and 0.15*15mm.
Services with or without adhesive on the back are available.

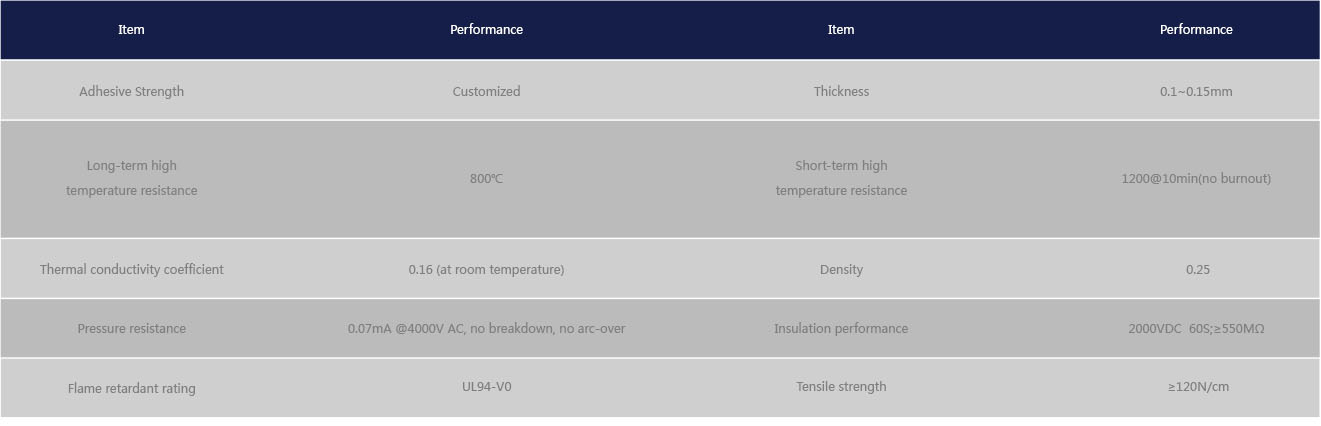

PERFORMANCE | MICA TAPE

APPLICATION
